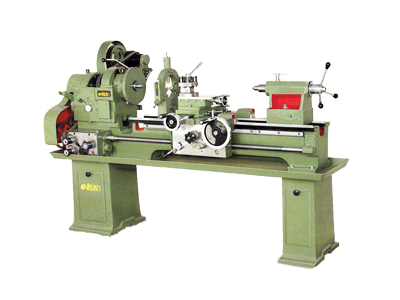

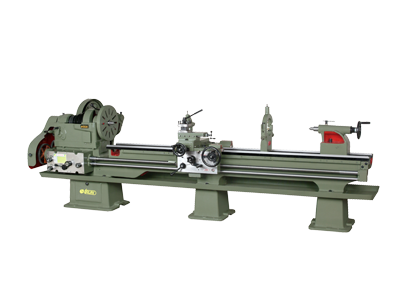

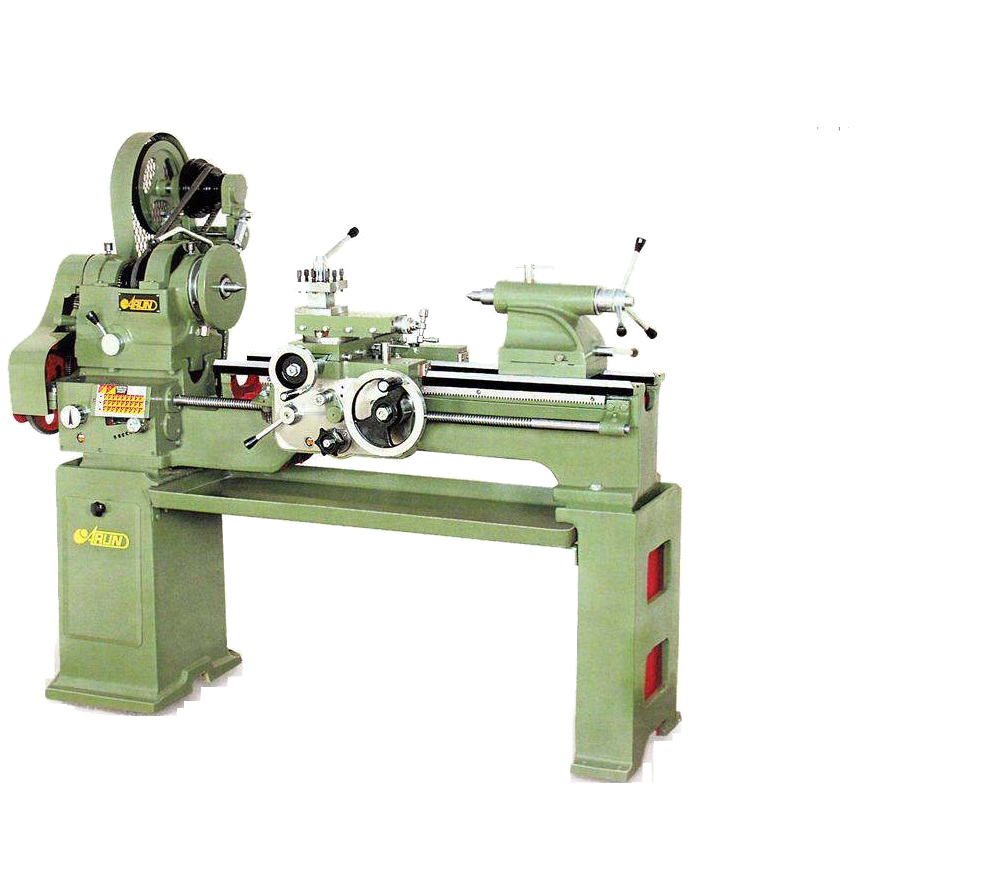

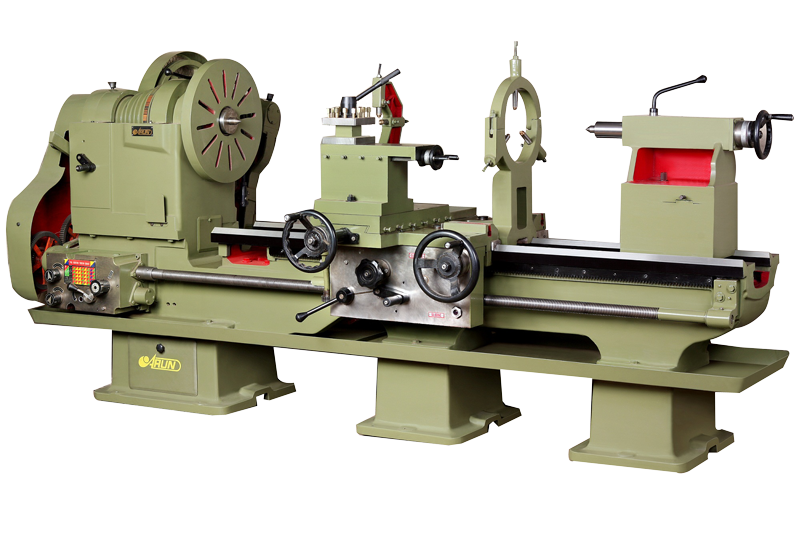

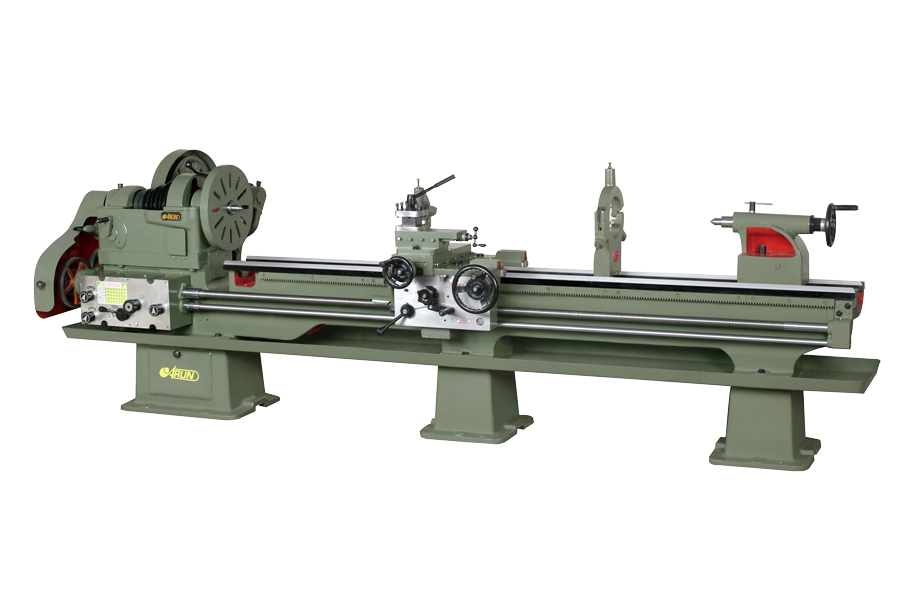

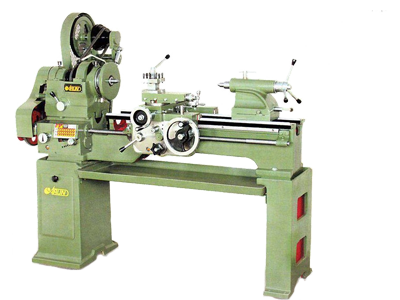

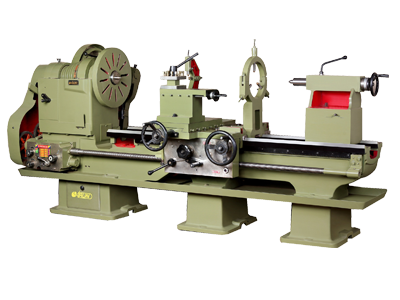

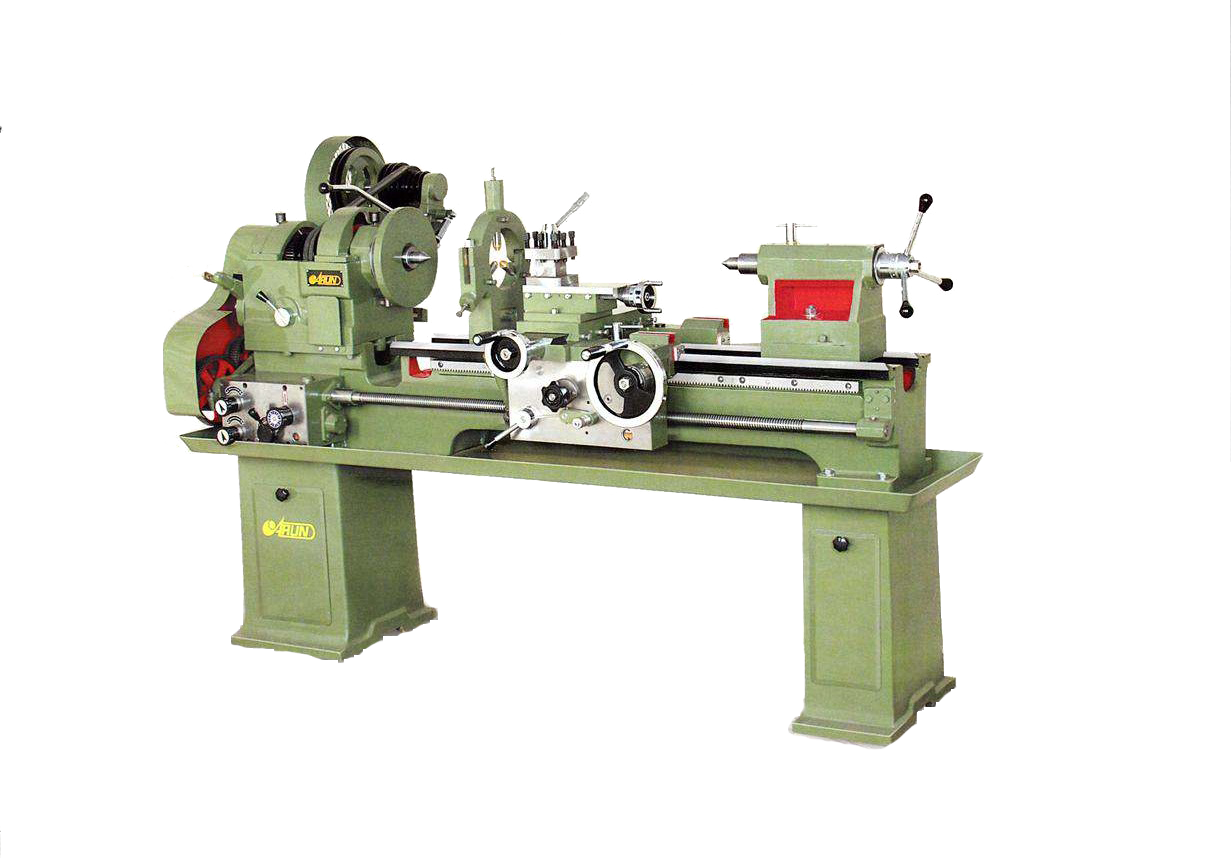

Technical Specificaion	HEAVY DUTY LATHE MACHINE 1675 MM., 2135 MM., 2740 MM., 3050 MM., & 3660 MM	MEDIUM DUTY LATHE MACHINE 1370 MM., 1600 MM. & 1830 MM.	LIGHT DUTY LATHE MACHINE 1370 MM, 1600 MM, 1370 & 1830 MM
CAPACITY	METRIC	METRIC	METRIC
Height of Centre	254 mm.	215 mm.	165 mm.
Swing Over bed	490 mm.	425 mm	325 mm
Swing Over cross slide	290 mm.	260 mm.	180 mm.
Movement of Cross Slide	300 mm.	250 mm.	225 mm.
Swing in Gap	800 mm.	620 mm.	500 mm.
BED
Bed Type	2V&2 Flat	2V&2 Flat	2V&2 Flat
Bed Width	325 mm.	279 mm.	238 mm.
Length of Gap in Bed	150 mm.	110mm.	110mm.
Length of Gap in Front of Face Plate	200 mm.	125 mm.	125 mm.
MAIN SPINDLE
Size of Threaded Spindle Nose	6 TPI 75 mm.	6 TPI 75 mm.	8 TPI 60 mm.
Taper Bore in Spindle Sleeve	MT-4	MT-4	MT-3
Spindle Bore	52 mm.	52 mm.	40 mm.
TAIL STOCK
Ram Diameter	50.8 mm.	50.8 mm.	38.1 mm.
English - Inches	19 (2 TO 24TPI)	19 (2 TO 24TPI)	19 (2 TO 24TPI)
Taper Bore in Centre Sleeve	MT-4	MT-4	MT-3
Ram Travel	190 mm.	150 mm.	115 mm.
COMPOUND SLIDE
Travel of Compound Slide	150 mm.	150 mm.	120 mm.
Tool Shank Section	25 x 25 mm.	25 x 25 mm.	22 x 22 mm.
SPEEDS
No. of Speeds	8	6	8
Range	25 - 475 RPM	40 - 550 RPM	35-825 RPM
THREAD / NO. RANGE
Lead Screw Diameter & Pitch	38.1 mm. x 4 TPI	31.75 mm. x 4 TPI	25.4 mm. x 4 TPI
Metric	13/1 to 6 mm.	19/0.50 to 8.0 mm.	19/0.50 to 8.0 mm.
Inch	19/2 to 24 TPI	23/4 to 40 TPI	23/4 to 40 TPI
ELECTRICALS
Main Motor (1440 R.P.M.-AC-3 Phase)	2 H.P. / 440 V	2 H.P. / 440 V	1 H.P. / 440 V

MODEL	ADMIT BETWEEN CENTER	WEIGHT (APPROX)	FLOOR SPACE (APPROX)
L-1 1370 mm.	650 mm.	430 kg.	1650 X 840 mm.
L-2 1600 mm.	875 mm.	470 kg.	1880 X 840 mm.
L-3 1830 mm.	1100 mm.	490 kg.	2100 X 840 mm.

MODEL	ADMIT BETWEEN CENTER	WEIGHT (APPROX)	FLOOR SPACE (APPROX)
M-1 1370 mm	450 mm.	575 kg.	1650 X 970 mm.
M-2 1600 mm	725 mm.	650 kg.	1950 X 970 mm.
M-3 1830 mm	900 mm	675 kg.	2100 X 970 mm.

MODEL	ADMIT BETWEEN CENTER	WEIGHT (APPROX)	FLOOR SPACE (APPROX)
H-1 1675 mm.	550 mm.	1050 kg.	2120 X 1475 mm.
H-2 2135 mm.	1000 mm.	1200 kg.	2575 X 1475 mm.
H-3 2740 mm.	1550 mm.	1400 kg.	3185 X 1475 mm.
H-4 3050 mm.	1850 mm.	1650 kg.	3490 X 1475 mm.
H-5 3660 mm.	2450 mm.	1900 kg.	4100 X 1475 mm.

Flame Hardened Bedways	Steady Rest & Follow Rest (exept 5'.6")	Belt Guard	Face Plate
Chuck Back Plate	Change Gear Set	Motor Pulley	2 Dead Centre
Tool Post Spanner	Switch Stand	Spindle Sleeve

Taper Turning Attachment	Electric Motor	R/f Switch	Machine Lamp
Norton Gear Box	Double Screw Gear Box	Dog Chuck	Rear Tool Post
Three Speed Gear Box	Electrical Coolant Pump with Fitting	Extra Bed Width	True Chuck
Extra Centre Height	Extra Spindle Hollow	V - Belt
