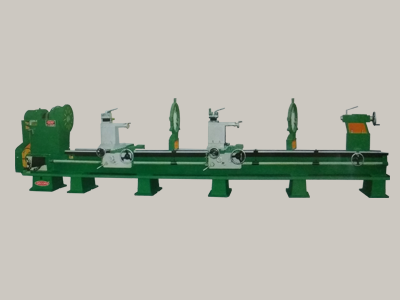

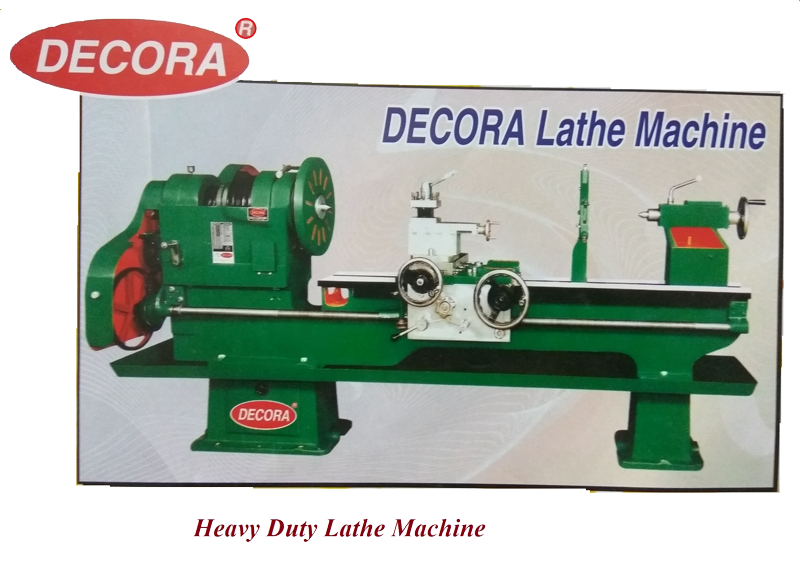

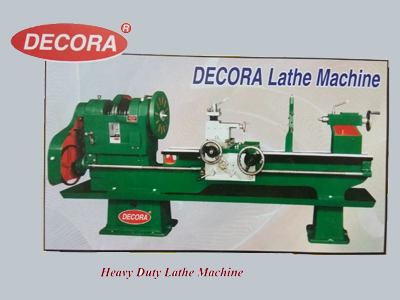

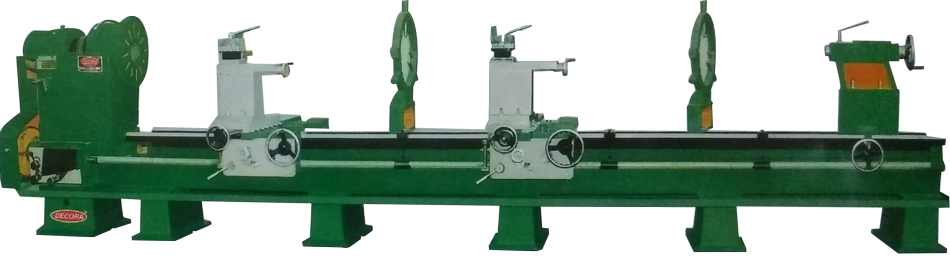

Decora Extra Heavy Duty Lathe machine

Special Feature

BED :
This bed is made of Close Grain Alloyed, Cast Iron up to required Hardness and Seasoned after rough machining to avoid stresses Bed Type 2 V & 2 flat. Rigid Construction of bed for taking maximum loads. Perfect gap bed machine insuring Accuracy Hardened & Ground bed ways.

Head Stock :
Head Stock Body Specially designed for strength & functionality. Induction hardened and ground spindle of special alloy steel. All Centrifugal running parts are well balanced Back Gear Teeth Are Helix Angle

Apron :
Is totally enclosed on oil bath system Lever Type Arrangement for Automatic feeds.T-Sloton Carriage for mounting special Features

Carriage :
Is mounted on invert 'V' and flat guide way of the bed. Carriage is wide enough to have a maximum bearing surface with rigid tool support the Slides are accurately scrapped

General :
Graduation dial for tail stock & apron wheel movement metric system micro collar for all screw and nut. Tail stock sleeve is tang shank type for heavy Drilling

Model	TH	TH-A	THE-A	TESH
Capacity
Height of center	250mm	300mm	375mm	450mm
Width Of bed	325mm	325mm	375mm	450mm
Max. Swing over bed	500mm	600mm	750mm	900mm
Max. Swing over slide	300mm	400mm	550mm	700mm
Max. Swing in Gap	775mm	900mm	1050mm	1200mm
Spindle
Spindle Bore	52mm	80mm	80mm	100mm
Spindle Nose	6TPI	6TPI	6TPI	6TPI
Speed -8-R.P.M	30 to 500	30 to 500	30 to 500	30 to 400
Travel
Cross Slide	270mm	300mm	350mm	400mm
Top Slide	150mm	150mm	175mm	250mm
Other
Lead screw TPI	4 TPI	4 TPI	2 TPI	2 TPI
Tail Stock Sleeve	MT -4	MT -4	MT -4	MT -5
Power Required	3 H.P	3 H.P	5 H.P	5 H.P

Admit Between Centers

SIZE	TH	Th-A	THE - A	TESH
7'	1000	1000	1000	700
9'	1600	1600	1600	1300
10'	1900	1900	1900	1600
12'	2500	2500	2500	2200
14'	3100	3100	3100	2800
16'	3700	3700	3700	3400
18'	4300	4300	4300	4000
20'	-	-	4900	4600
22'	-	-	5500	5200
24'	-	-	6100	5800
